Diversity Analysis: MS vs Healthy Cohort#
This notebook demonstrates mirpy diversity analysis workflows with:
VDJtools-style diversity metrics

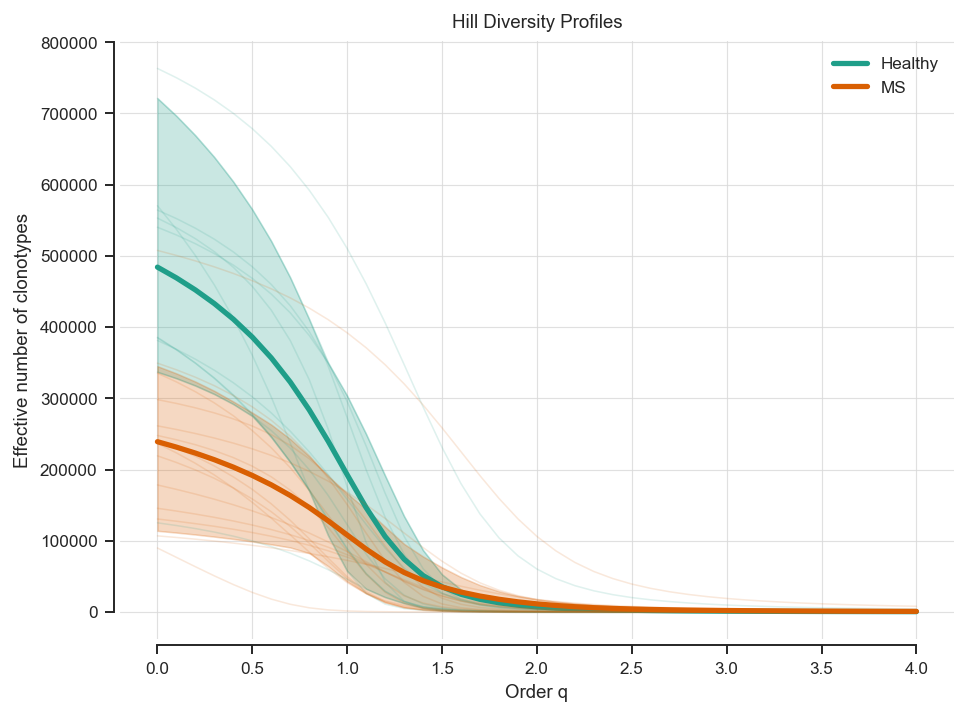

Hill diversity curves

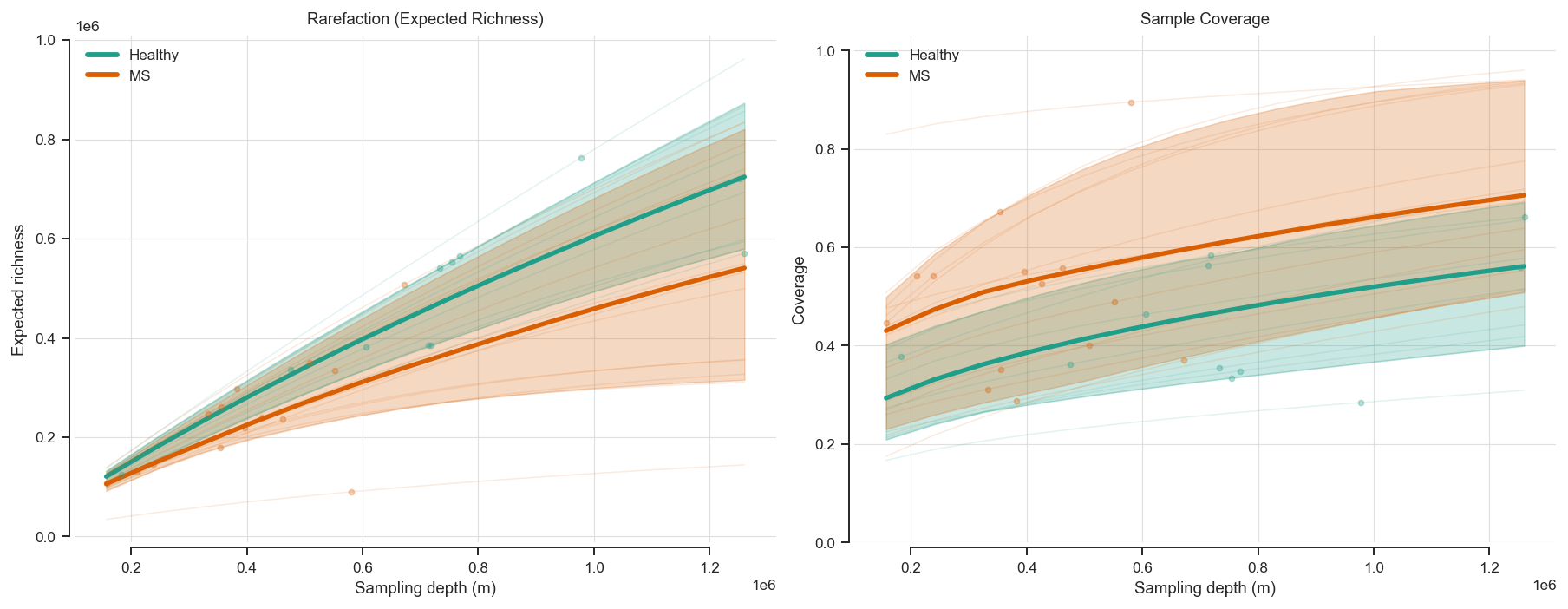

Rarefaction and sample coverage curves
Cohort comparison (Healthy vs Multiple Sclerosis)
Dataset source: isalgo/airr_benchmark (vdjtools/metadata_ms.txt). Target visuals include a Fig. 2-inspired diversity summary, rarefaction/coverage curves with confidence intervals, and Chao1 boxplot significance annotation.
[1]:
# Set deterministic state and report environment versions for reproducibility
import importlib.metadata as _meta
import random
import sys
import numpy as np
SEED = 42
random.seed(SEED)
np.random.seed(SEED)
print(f'Python {sys.version.split()[0]}')
for _pkg in ['mirpy-lib', 'numpy', 'pandas', 'polars', 'scipy', 'matplotlib', 'seaborn']:
try:
print(f' {_pkg}: {_meta.version(_pkg)}')
except _meta.PackageNotFoundError:
pass
print(f'SEED={SEED}')
Python 3.12.12
mirpy-lib: 1.1.0
numpy: 1.26.4
pandas: 3.0.3
polars: 1.40.1
scipy: 1.17.1
matplotlib: 3.10.9
seaborn: 0.13.2
SEED=42
[2]:
# Resolve repository root and import mirpy notebook asset helpers
from pathlib import Path
repo_root = Path.cwd().resolve().parent if Path.cwd().name == 'notebooks' else Path.cwd().resolve()
import sys as _sys
if str(repo_root) not in _sys.path:
_sys.path.insert(0, str(repo_root))
from mir.utils.notebook_assets import ensure_airr_benchmark
/Users/mikesh/vcs/mirpy/.venv/lib/python3.12/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
from .autonotebook import tqdm as notebook_tqdm
[3]:
# Download the required VDJtools benchmark subset and locate metadata
dataset_root = ensure_airr_benchmark(
repo_root,
allow_patterns=[
'vdjtools/**',
'vdjtools_lite/**',
],
)
meta_candidates = [
dataset_root / 'vdjtools' / 'metadata_ms.txt',
dataset_root / 'vdjtools_lite' / 'metadata_ms.txt',
]
metadata_path = next((p for p in meta_candidates if p.exists()), None)
if metadata_path is None:
raise FileNotFoundError('metadata_ms.txt not found under vdjtools/ or vdjtools_lite/.')
print('dataset_root:', dataset_root)
print('metadata_path:', metadata_path)
dataset_root: /Users/mikesh/vcs/mirpy/notebooks/assets/large/airr_benchmark
metadata_path: /Users/mikesh/vcs/mirpy/notebooks/assets/large/airr_benchmark/vdjtools/metadata_ms.txt
[4]:
# Load cohort metadata and normalize disease labels to Healthy/MS
import pandas as pd
meta = pd.read_csv(metadata_path, sep='\t')
file_col_candidates = ['file_name', 'file', 'filename', 'sample_file']
sample_col_candidates = ['sample_id', 'Run', 'run', 'sample', 'id']
group_col_candidates = [
c for c in meta.columns if any(x in c.lower() for x in ['status', 'group', 'disease', 'condition', 'state'])
]
file_col = next((c for c in file_col_candidates if c in meta.columns), None)
sample_col = next((c for c in sample_col_candidates if c in meta.columns), None)
group_col = group_col_candidates[0] if group_col_candidates else None
if file_col is None or sample_col is None or group_col is None:
raise ValueError(f'Could not infer metadata columns. Found columns: {list(meta.columns)}')
keep_cols = [sample_col, file_col, group_col]
for extra_col in ('age', 'sex'):
if extra_col in meta.columns:
keep_cols.append(extra_col)
meta = meta[keep_cols].copy()
rename_map = {sample_col: 'sample_id', file_col: 'file_name', group_col: 'raw_group'}
if 'age' in meta.columns:
rename_map['age'] = 'age'
if 'sex' in meta.columns:
rename_map['sex'] = 'sex'
meta = meta.rename(columns=rename_map)
# Re-label columns after the copy so the optional demographic fields stay available.
if 'age' in meta.columns:
meta['age'] = pd.to_numeric(meta['age'], errors='coerce')
if 'sex' in meta.columns:
meta['sex'] = meta['sex'].astype(str).str.strip()
def _normalize_group(value: str) -> str:
s = str(value).strip().lower()
if 'multiple' in s or s == 'ms' or 'ms' in s.replace('_', ' ').split():
return 'MS'
return 'Healthy'
meta['group'] = meta['raw_group'].map(_normalize_group)
meta = meta.sort_values(['group', 'sample_id', 'file_name']).reset_index(drop=True)
meta.head()
[4]:
| sample_id | file_name | raw_group | age | sex | group | |
|---|---|---|---|---|---|---|
| 0 | C1 | A2-i129.txt.gz | C | 11.0 | M | Healthy |
| 1 | C10 | A4-i194.txt.gz | C | 20.0 | M | Healthy |
| 2 | C11 | A4-i195.txt.gz | C | 21.0 | F | Healthy |
| 3 | C2 | A2-i131.txt.gz | C | 9.0 | M | Healthy |
| 4 | C3 | A2-i132.txt.gz | C | 6.0 | F | Healthy |
[5]:
# Parse repertoires and compute per-sample diversity summaries and curves
from typing import Iterable
import polars as pl
from mir.common.parser import VDJtoolsParser
from mir.common.repertoire import LocusRepertoire
parser = VDJtoolsParser(sep='\t')
def _resolve_file(name: str) -> Path:
p1 = dataset_root / 'vdjtools' / name
p2 = dataset_root / 'vdjtools_lite' / name
if p1.exists():
return p1
if p2.exists():
return p2
return dataset_root / name
def _adaptive_global_steps(min_n: int, max_n: int, n_steps: int = 14) -> list[int]:
low = max(10, int(min_n))
high = max(low, int(max_n))
if low == high:
return [low]
raw = np.linspace(low, high, n_steps)
return sorted({int(round(x)) for x in raw if int(round(x)) > 0})
sample_payloads: list[dict] = []
summary_rows: list[dict] = []
hill_rows: list[pl.DataFrame] = []
rare_rows: list[pl.DataFrame] = []
for row in meta.itertuples(index=False):
sample_id = str(row.sample_id)
group = str(row.group)
age = float(getattr(row, 'age', np.nan)) if 'age' in meta.columns else np.nan
file_path = _resolve_file(str(row.file_name))
if not file_path.exists():
continue
try:
clonotypes = parser.parse(str(file_path))
except Exception:
continue
if not clonotypes:
continue
locus = str(getattr(clonotypes[0], 'locus', '') or 'TRB')
rep = LocusRepertoire(clonotypes=clonotypes, locus=locus, repertoire_id=sample_id)
summary = rep.diversity(count_field='duplicate_count')
summary_rows.append(
{
'sample_id': sample_id,
'group': group,
'age': age,
'locus': locus,
**summary.to_dict(),
}
)
hill_df = rep.hill_curve(count_field='duplicate_count')
hill_rows.append(hill_df.with_columns(pl.lit(sample_id).alias('sample_id'), pl.lit(group).alias('group')))
sample_payloads.append(
{
'sample_id': sample_id,
'group': group,
'rep': rep,
'n': int(summary.abundance),
}
)
if sample_payloads:
min_n = min(x['n'] for x in sample_payloads)
max_n = max(x['n'] for x in sample_payloads)
global_steps = _adaptive_global_steps(min_n, max_n, n_steps=14)
else:
min_n, max_n, global_steps = 0, 0, []
for payload in sample_payloads:
sample_id = payload['sample_id']
group = payload['group']
rep = payload['rep']
n = payload['n']
# Shared, evenly spaced steps across the cohort + exact sample depth.
steps = sorted({m for m in global_steps if m > 0} | {n})
rare_df = rep.rarefaction_curve(
count_field='duplicate_count',
m_steps=steps,
include_exact=True,
)
rare_rows.append(rare_df.with_columns(pl.lit(sample_id).alias('sample_id'), pl.lit(group).alias('group')))
summary_df = pd.DataFrame(summary_rows)
if summary_df.empty:
raise RuntimeError('No samples were parsed. Check metadata file_name values and parser compatibility.')
summary_df = summary_df.sort_values(['group', 'sample_id']).reset_index(drop=True)
hill_df = pl.concat(hill_rows) if hill_rows else pl.DataFrame()
rare_df = pl.concat(rare_rows) if rare_rows else pl.DataFrame()
print('Samples used:', len(summary_df))
print('Group counts:')
print(summary_df[['group']].value_counts())
print(f'Adaptive rarefaction step range: min_n={min_n}, max_n={max_n}, n_steps={len(global_steps)}')
if global_steps:
print('First 5 global steps:', global_steps[:5])
print('Last 5 global steps:', global_steps[-5:])
summary_df.head()
Samples used: 25
Group counts:
group
MS 14
Healthy 11
Name: count, dtype: int64
Adaptive rarefaction step range: min_n=156825, max_n=1260200, n_steps=14
First 5 global steps: [156825, 241700, 326575, 411450, 496325]
Last 5 global steps: [920700, 1005575, 1090450, 1175325, 1260200]
[5]:
| sample_id | group | age | locus | abundance | diversity | singletons | doubletons | expanded | hyperexpanded | chao1 | gini_simpson | shannon | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | C1 | Healthy | 11.0 | TRB | 733696 | 540240 | 473315 | 47939 | 14 | 0 | 2.876771e+06 | 0.999833 | 12.623683 |
| 1 | C10 | Healthy | 20.0 | TRB | 183043 | 125307 | 113865 | 7384 | 27 | 1 | 1.003108e+06 | 0.998167 | 10.735929 |
| 2 | C11 | Healthy | 21.0 | TRB | 475026 | 337012 | 302848 | 25105 | 19 | 2 | 2.163599e+06 | 0.998536 | 11.718054 |
| 3 | C2 | Healthy | 9.0 | TRB | 606357 | 381345 | 325027 | 35918 | 17 | 0 | 1.851907e+06 | 0.999775 | 11.972000 |
| 4 | C3 | Healthy | 6.0 | TRB | 977264 | 763165 | 699291 | 42508 | 2 | 0 | 6.514973e+06 | 0.999983 | 13.142935 |
[6]:

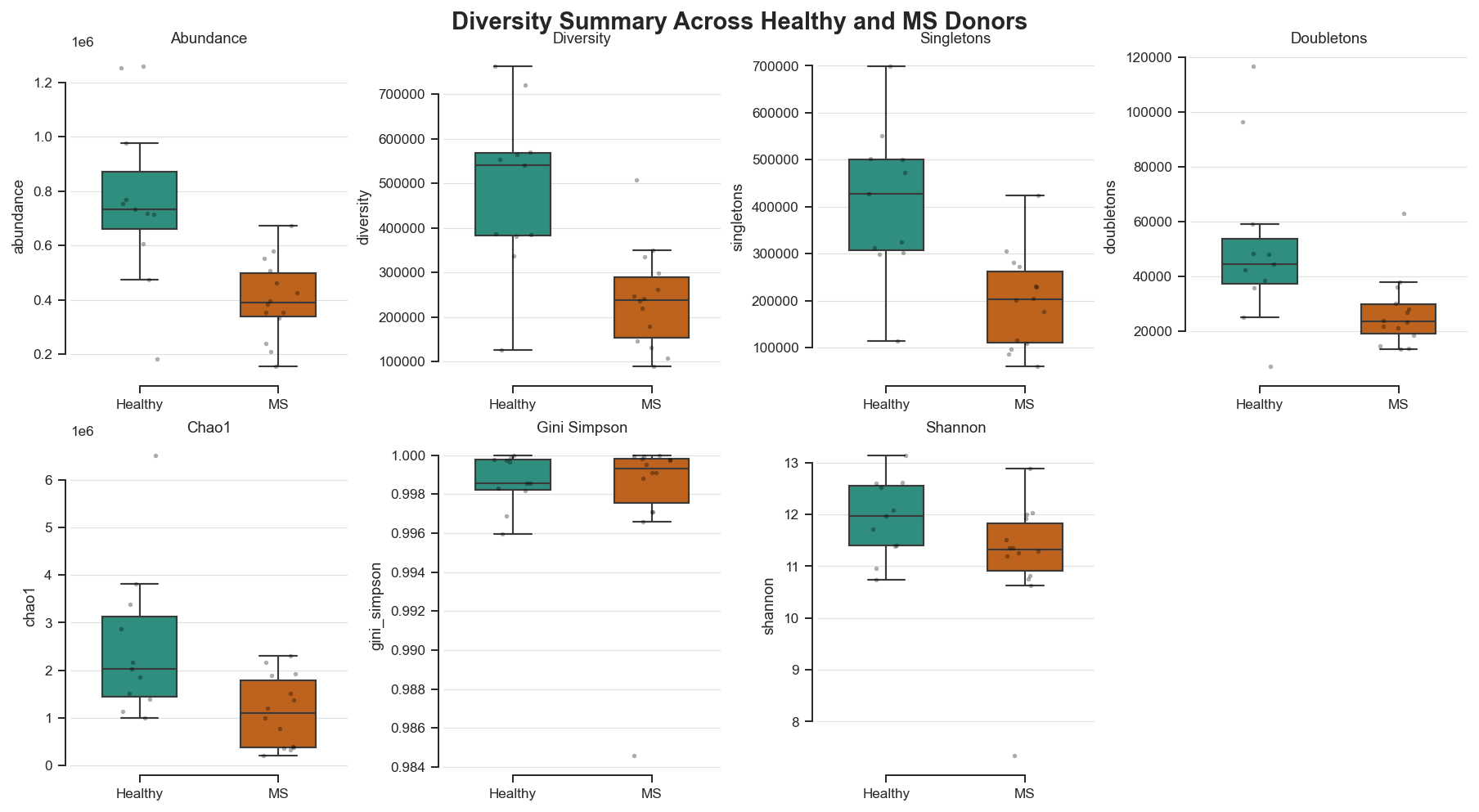

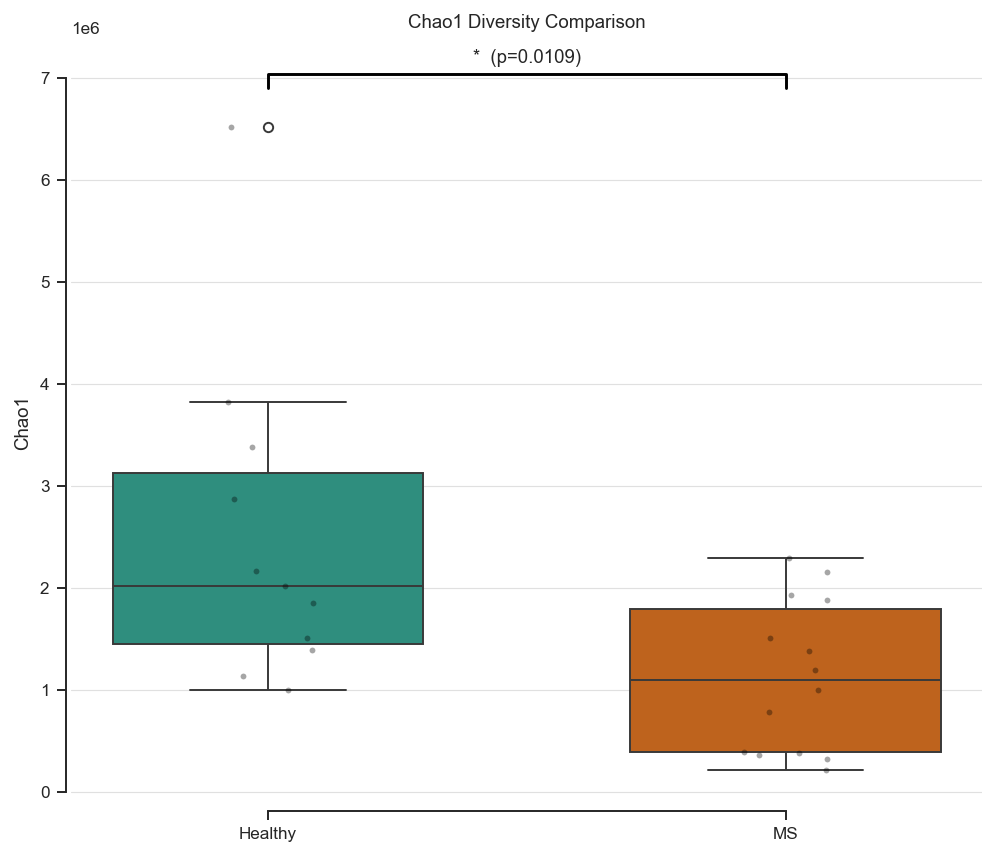

# Render a polished donor summary table with per-group mean ± SD
from IPython.display import display
summary_table = summary_df[['sample_id', 'group', 'age', 'abundance', 'diversity', 'chao1', 'gini_simpson', 'shannon']].copy()
summary_table['age'] = summary_table['age'].round(1)
summary_table['abundance'] = summary_table['abundance'].map(lambda x: f'{int(x):,}')
summary_table['diversity'] = summary_table['diversity'].map(lambda x: f'{int(x):,}')
summary_table['chao1'] = summary_table['chao1'].map(lambda x: f'{x:,.0f}')
summary_table['gini_simpson'] = summary_table['gini_simpson'].map(lambda x: f'{x:.4f}')
summary_table['shannon'] = summary_table['shannon'].map(lambda x: f'{x:.2f}')
agg_rows = []
for group, group_df in summary_df.groupby('group', sort=True):
agg_rows.append(
{
'sample_id': f'{group} mean ± sd',
'group': group,
'age': f"{group_df['age'].mean():.1f} ± {group_df['age'].std(ddof=1):.1f}",
'abundance': f"{group_df['abundance'].mean():,.0f} ± {group_df['abundance'].std(ddof=1):,.0f}",
'diversity': f"{group_df['diversity'].mean():,.0f} ± {group_df['diversity'].std(ddof=1):,.0f}",
'chao1': f"{group_df['chao1'].mean():,.0f} ± {group_df['chao1'].std(ddof=1):,.0f}",
'gini_simpson': f"{group_df['gini_simpson'].mean():.4f} ± {group_df['gini_simpson'].std(ddof=1):.4f}",
'shannon': f"{group_df['shannon'].mean():.2f} ± {group_df['shannon'].std(ddof=1):.2f}",
}
)
summary_display = pd.concat([summary_table, pd.DataFrame(agg_rows)], ignore_index=True)
summary_display = summary_display.sort_values(['group', 'sample_id'], kind='stable').reset_index(drop=True)
styler = (
summary_display.style
.set_caption('Donor diversity summary: ages, abundance, and diversity with per-group mean ± SD')
.hide(axis='index')
.format(na_rep='')
.set_properties(**{'border-color': '#d9d9d9', 'padding': '0.35rem 0.5rem'})
.set_table_styles(
[
{'selector': 'caption', 'props': [('font-weight', '700'), ('font-size', '1.05rem'), ('text-align', 'left'), ('padding-bottom', '0.35rem')]},
{'selector': 'th', 'props': [('background-color', '#f6f6f6'), ('font-weight', '700')]},
{'selector': 'tr:nth-child(even)', 'props': [('background-color', '#fcfcfc')]},
]
)
)
display(styler)
print('Table rows:', len(summary_display))
print('Per-group mean ± SD rows appended at bottom.')
| sample_id | group | age | abundance | diversity | chao1 | gini_simpson | shannon |
|---|---|---|---|---|---|---|---|
| C1 | Healthy | 11.000000 | 733,696 | 540,240 | 2,876,771 | 0.9998 | 12.62 |
| C10 | Healthy | 20.000000 | 183,043 | 125,307 | 1,003,108 | 0.9982 | 10.74 |
| C11 | Healthy | 21.000000 | 475,026 | 337,012 | 2,163,599 | 0.9985 | 11.72 |
| C2 | Healthy | 9.000000 | 606,357 | 381,345 | 1,851,907 | 0.9998 | 11.97 |
| C3 | Healthy | 6.000000 | 977,264 | 763,165 | 6,514,973 | 1.0000 | 13.14 |
| C4 | Healthy | 16.000000 | 768,339 | 564,360 | 3,386,699 | 0.9997 | 12.60 |
| C5 | Healthy | 16.000000 | 754,191 | 553,121 | 3,821,300 | 0.9959 | 12.08 |
| C6 | Healthy | 10.000000 | 714,268 | 385,691 | 1,391,268 | 0.9983 | 11.40 |
| C7 | Healthy | 25.000000 | 1,260,200 | 570,480 | 1,514,045 | 0.9969 | 10.96 |
| C8 | Healthy | 22.000000 | 718,357 | 384,882 | 1,139,362 | 0.9985 | 11.39 |
| C9 | Healthy | 24.000000 | 1,252,793 | 721,262 | 2,021,072 | 0.9997 | 12.52 |
| Healthy mean ± sd | Healthy | 16.4 ± 6.6 | 767,594 ± 313,358 | 484,260 ± 183,411 | 2,516,737 ± 1,607,698 | 0.9987 ± 0.0013 | 11.92 ± 0.76 |
| MS mean ± sd | MS | 12.8 ± 2.9 | 401,930 ± 145,733 | 239,199 ± 111,607 | 1,130,573 ± 740,958 | 0.9979 ± 0.0040 | 11.17 ± 1.25 |
| MS1 | MS | 12.000000 | 425,677 | 240,890 | 1,001,516 | 0.9971 | 10.81 |
| MS10 | MS | 15.000000 | 672,153 | 507,713 | 1,929,221 | 1.0000 | 12.88 |
| MS11 | MS | 14.000000 | 382,959 | 298,278 | 2,295,109 | 0.9995 | 12.00 |
| MS12 | MS | 13.000000 | 354,380 | 178,465 | 364,851 | 0.9998 | 11.35 |
| MS13 | MS | 14.000000 | 238,554 | 145,710 | 394,297 | 0.9997 | 11.30 |
| MS2 | MS | 209,897 | 130,666 | 327,689 | 0.9998 | 11.25 | |
| MS3 | MS | 8.000000 | 333,035 | 247,923 | 2,160,768 | 0.9971 | 11.36 |
| MS4 | MS | 14.000000 | 156,825 | 106,979 | 386,774 | 0.9999 | 11.19 |
| MS5 | MS | 15.000000 | 395,758 | 219,336 | 780,708 | 0.9966 | 10.76 |
| MS6 | MS | 15.000000 | 354,984 | 261,446 | 1,510,009 | 0.9999 | 12.03 |
| MS7 | MS | 551,228 | 335,372 | 1,381,174 | 0.9991 | 11.51 | |
| MS8 | MS | 14.000000 | 508,701 | 349,422 | 1,883,991 | 0.9991 | 11.92 |
| MS8_post | MS | 14.000000 | 580,622 | 89,947 | 215,243 | 0.9846 | 7.35 |
| MS9 | MS | 6.000000 | 462,240 | 236,637 | 1,196,674 | 0.9988 | 10.63 |
Table rows: 27
Per-group mean ± SD rows appended at bottom.
[7]:
# Build a cohort demographics summary with age range and sex counts
from IPython.display import display
if 'sex' not in meta.columns:
raise RuntimeError("Expected a 'sex' column in the cohort metadata.")
meta_demographics = meta.copy()
meta_demographics['sex'] = meta_demographics['sex'].fillna('').astype(str).str.strip().str.upper()
meta_demographics['sex'] = meta_demographics['sex'].replace({'FEMALE': 'F', 'MALE': 'M'})
meta_demographics['cohort_label'] = meta_demographics['group']
meta_demographics['note'] = ''
meta_demographics.loc[meta_demographics['sample_id'].astype(str).str.upper() == 'M14', 'note'] = 'post-HSCT'
cohort_rows = []
for group, group_df in meta_demographics.groupby('cohort_label', sort=True):
age_series = pd.to_numeric(group_df['age'], errors='coerce') if 'age' in group_df.columns else pd.Series(dtype=float)
sex_counts = group_df['sex'].value_counts(dropna=False)
cohort_rows.append(
{
'Cohort': group,
'Samples': len(group_df),
'Age range': (
f"{int(age_series.min())}–{int(age_series.max())}" if age_series.notna().any() else ''
),
'Age mean ± sd': (
f"{age_series.mean():.1f} ± {age_series.std(ddof=1):.1f}" if age_series.notna().sum() > 1 else ''
),
'Sex F': int(sex_counts.get('F', 0)),
'Sex M': int(sex_counts.get('M', 0)),
'Sex other/NA': int(len(group_df) - int(sex_counts.get('F', 0)) - int(sex_counts.get('M', 0))),
'Post-HSCT note': 'M14' if (group_df['sample_id'].astype(str).str.upper() == 'M14').any() else '',
}
)
cohort_df = pd.DataFrame(cohort_rows)
cohort_display = cohort_df.copy()
cohort_styler = (
cohort_display.style
.set_caption('Cohort demographics summary: age range and sex counts')
.hide(axis='index')
.set_properties(**{'border-color': '#d9d9d9', 'padding': '0.35rem 0.5rem'})
.set_table_styles(
[
{'selector': 'caption', 'props': [('font-weight', '700'), ('font-size', '1.05rem'), ('text-align', 'left'), ('padding-bottom', '0.35rem')]},
{'selector': 'th', 'props': [('background-color', '#f6f6f6'), ('font-weight', '700')]},
{'selector': 'tr:nth-child(even)', 'props': [('background-color', '#fcfcfc')]},
]
)
)
display(cohort_styler)
print('M14 is marked as a post-HSCT MS sample in the note column.')
| Cohort | Samples | Age range | Age mean ± sd | Sex F | Sex M | Sex other/NA | Post-HSCT note |
|---|---|---|---|---|---|---|---|
| Healthy | 11 | 6–25 | 16.4 ± 6.6 | 4 | 7 | 0 | |
| MS | 14 | 6–15 | 12.8 ± 2.9 | 14 | 0 | 0 |
M14 is marked as a post-HSCT MS sample in the note column.
[8]:
# Build a Fig. 2-inspired multi-panel diversity summary figure
import matplotlib as mpl
import matplotlib.pyplot as plt
import seaborn as sns
# Publication-style typography and panel aesthetics inspired by journal figure conventions.
mpl.rcParams.update(
{
'font.family': 'serif',
'font.serif': ['STIX Two Text', 'Times New Roman', 'DejaVu Serif'],
'mathtext.fontset': 'stix',
'axes.linewidth': 1.0,
'axes.titlesize': 13,
'axes.labelsize': 11,
'xtick.labelsize': 10,
'ytick.labelsize': 10,
'legend.fontsize': 10,
'figure.dpi': 140,
'savefig.dpi': 300,
}
)
sns.set_theme(style='ticks', context='paper')
metrics = ['abundance', 'diversity', 'singletons', 'doubletons', 'chao1', 'gini_simpson', 'shannon']
palette = {'Healthy': '#1f9e89', 'MS': '#d95f02'}
fig, axes = plt.subplots(2, 4, figsize=(12.8, 6.8), constrained_layout=True)
axes = axes.ravel()
for i, metric in enumerate(metrics):
ax = axes[i]
sns.boxplot(
data=summary_df,
x='group',
y=metric,
hue='group',
order=['Healthy', 'MS'],
hue_order=['Healthy', 'MS'],
palette=palette,
ax=ax,
width=0.54,
linewidth=1.1,
fliersize=0,
legend=False,
)
sns.stripplot(
data=summary_df,
x='group',
y=metric,
order=['Healthy', 'MS'],
color='black',
alpha=0.32,
size=2.8,
jitter=0.14,
ax=ax,
)
ax.set_title(metric.replace('_', ' ').title(), pad=5)
ax.set_xlabel('')
ax.grid(axis='y', color='#d9d9d9', linewidth=0.6, alpha=0.8)
sns.despine(ax=ax, offset=3, trim=True)
axes[-1].axis('off')
fig.suptitle('Diversity Summary Across Healthy and MS Donors', y=1.02, fontsize=15, fontweight='bold')
plt.show()
[9]:
# Plot rarefaction and sample coverage curves with confidence intervals by cohort
from matplotlib.lines import Line2D
if rare_df.height == 0:
raise RuntimeError('No rarefaction results were generated.')
rare_pd = rare_df.to_pandas().sort_values(['group', 'sample_id', 'm'])
common_m = sorted(set(global_steps)) if 'global_steps' in globals() else sorted(rare_pd['m'].unique())
fig, axes = plt.subplots(1, 2, figsize=(12.8, 4.9), constrained_layout=True)
for group in ['Healthy', 'MS']:
sub = rare_pd[rare_pd['group'] == group].copy()
if sub.empty:
continue
color = palette[group]
# Light donor trajectories on common steps only to keep curves smooth.
for sid, ssub in sub.groupby('sample_id'):
scommon = ssub[ssub['m'].isin(common_m)].sort_values('m')
if scommon.empty:
continue
axes[0].plot(scommon['m'], scommon['s_est'], color=color, linewidth=0.8, alpha=0.12)
axes[1].plot(scommon['m'], scommon['coverage'], color=color, linewidth=0.8, alpha=0.12)
# Mark exact sample depth as a small point.
sexact = ssub[ssub['m'] == ssub['n']]
if not sexact.empty:
axes[0].scatter(sexact['m'], sexact['s_est'], color=color, s=10, alpha=0.3, zorder=3)
axes[1].scatter(sexact['m'], sexact['coverage'], color=color, s=10, alpha=0.3, zorder=3)
ssub_common = sub[sub['m'].isin(common_m)]
agg = ssub_common.groupby('m', as_index=False).agg(
s_med=('s_est', 'median'),
s_lwr=('s_est', lambda x: np.quantile(x, 0.1)),
s_upr=('s_est', lambda x: np.quantile(x, 0.9)),
coverage_med=('coverage', 'median'),
coverage_lwr=('coverage', lambda x: np.quantile(x, 0.1)),
coverage_upr=('coverage', lambda x: np.quantile(x, 0.9)),
)
axes[0].plot(agg['m'], agg['s_med'], color=color, linewidth=2.7)
axes[0].fill_between(agg['m'], agg['s_lwr'], agg['s_upr'], color=color, alpha=0.24)
axes[1].plot(agg['m'], agg['coverage_med'], color=color, linewidth=2.7)
axes[1].fill_between(agg['m'], agg['coverage_lwr'], agg['coverage_upr'], color=color, alpha=0.24)
axes[0].set_title('Rarefaction (Expected Richness)', pad=7)
axes[0].set_xlabel('Sampling depth (m)')
axes[0].set_ylabel('Expected richness')
axes[0].grid(axis='both', color='#d9d9d9', linewidth=0.6, alpha=0.8)
axes[1].set_title('Sample Coverage', pad=7)
axes[1].set_xlabel('Sampling depth (m)')
axes[1].set_ylabel('Coverage')
axes[1].set_ylim(0, 1.03)
axes[1].grid(axis='both', color='#d9d9d9', linewidth=0.6, alpha=0.8)
legend = [
Line2D([0], [0], color=palette['Healthy'], lw=3, label='Healthy'),
Line2D([0], [0], color=palette['MS'], lw=3, label='MS'),
]
axes[0].legend(handles=legend, frameon=False, loc='best')
axes[1].legend(handles=legend, frameon=False, loc='best')
for ax in axes:
sns.despine(ax=ax, offset=3, trim=True)
plt.show()
[10]:
# Compare Chao1 distributions and annotate significance with p-value stars
from scipy.stats import mannwhitneyu
healthy = summary_df.loc[summary_df['group'] == 'Healthy', 'chao1'].to_numpy()
ms = summary_df.loc[summary_df['group'] == 'MS', 'chao1'].to_numpy()
if len(healthy) > 0 and len(ms) > 0:
stat, p_value = mannwhitneyu(healthy, ms, alternative='two-sided')
else:
stat, p_value = np.nan, np.nan
def p_to_star(p: float) -> str:
if not np.isfinite(p):
return 'n.s.'
if p < 1e-4:
return '****'
if p < 1e-3:
return '***'
if p < 1e-2:
return '**'
if p < 0.05:
return '*'
return 'n.s.'
star = p_to_star(float(p_value))
fig, ax = plt.subplots(figsize=(7, 6), constrained_layout=True)
sns.boxplot(
data=summary_df,
x='group',
y='chao1',
hue='group',
order=['Healthy', 'MS'],
hue_order=['Healthy', 'MS'],
palette=palette,
ax=ax,
width=0.6,
legend=False,
)
sns.stripplot(data=summary_df, x='group', y='chao1', order=['Healthy', 'MS'], color='black', alpha=0.35, size=3, ax=ax)
ymax = float(summary_df['chao1'].max()) if len(summary_df) else 1.0
y = ymax * 1.08
ax.plot([0, 0, 1, 1], [y * 0.98, y, y, y * 0.98], color='black', linewidth=1.5)
ax.text(0.5, y * 1.01, f'{star} (p={p_value:.3g})', ha='center', va='bottom')
ax.set_title('Chao1 Diversity Comparison')
ax.set_xlabel('')
ax.set_ylabel('Chao1')
ax.grid(axis='y', color='#d9d9d9', linewidth=0.6, alpha=0.8)
sns.despine(ax=ax, offset=3, trim=True)
plt.show()
print('Mann-Whitney U statistic:', stat)
print('p-value:', p_value)
Mann-Whitney U statistic: 124.0
p-value: 0.01090784295903633
[11]:
# Plot Hill diversity profiles by cohort
if hill_df.height == 0:
raise RuntimeError('No Hill curve results were generated.')
hill_pd = hill_df.to_pandas().sort_values(['group', 'sample_id', 'q'])
fig, ax = plt.subplots(figsize=(6.8, 5.0), constrained_layout=True)
for group in ['Healthy', 'MS']:
sub = hill_pd[hill_pd['group'] == group].copy()
if sub.empty:
continue
color = palette[group]
# Light donor-level trajectories + bold cohort mean with quantile band.
for sid, ssub in sub.groupby('sample_id'):
ax.plot(ssub['q'], ssub['hill'], color=color, linewidth=0.8, alpha=0.14)
agg = sub.groupby('q', as_index=False).agg(
hill_mean=('hill', 'mean'),
hill_lwr=('hill', lambda x: np.quantile(x, 0.1)),
hill_upr=('hill', lambda x: np.quantile(x, 0.9)),
)
ax.plot(agg['q'], agg['hill_mean'], color=color, linewidth=2.7, label=group)
ax.fill_between(agg['q'], agg['hill_lwr'], agg['hill_upr'], color=color, alpha=0.24)
ax.set_title('Hill Diversity Profiles', pad=7)
ax.set_xlabel('Order q')
ax.set_ylabel('Effective number of clonotypes')
ax.grid(axis='both', color='#d9d9d9', linewidth=0.6, alpha=0.8)
ax.legend(frameon=False, loc='best')
sns.despine(ax=ax, offset=3, trim=True)
plt.show()
Notes#
The cohort labels are normalized to
HealthyandMSfrom metadata text values.The donor summary table includes age, abundance, diversity, Chao1, Gini-Simpson, and Shannon, with per-group mean ± SD rows.
A cohort-level demographics table above summarizes age range and sex counts for each cohort.
The source MS metadata includes a post-HSCT sample (M14); treat it as a special case when making cohort-level comparisons.
Diversity summaries use
duplicate_countby default in this notebook.For UMI-based diversity, pass
count_field='umi_count'todiversity,hill_curve, andrarefaction_curve.For paired/single-cell objects, mirpy defaults to
count_field='barcode_count'.
